LED Panel Lights

Fairy 620x620- P6252

Imigy Lighting specializes in providing high-quality panel lights to our customers. Our square LED light panels are available with luminous efficacy rates of 100, 120, and 135lm/W. Our panels are designed with a high power factor of ≥0.9 to ensure that they are energy efficient and long-lasting.We offer a variety of kits for our customers to choose from, including suspension, recessed, surface-mounted. This versatility in installation options allows our panels to be used in a wide range of applications, from commercial to residential settings.All of our products are certified by CE, CB, RoHS, and ErP, ensuring that they meet high standards for safety and performance. We are committed to providing our customers with the best possible lighting solutions and strive to exceed their expectations with every purchase.
30W 3000lm 100lm/W CRI>80 110°
Code P6252-DMH
Power 30W
Input 220-240Vac 50/60Hz
Color Temp 3000K/4000K/6000K
Lumen@4000K 3000lm
IP Rating 20
CRI >80
Beam Angle 110°

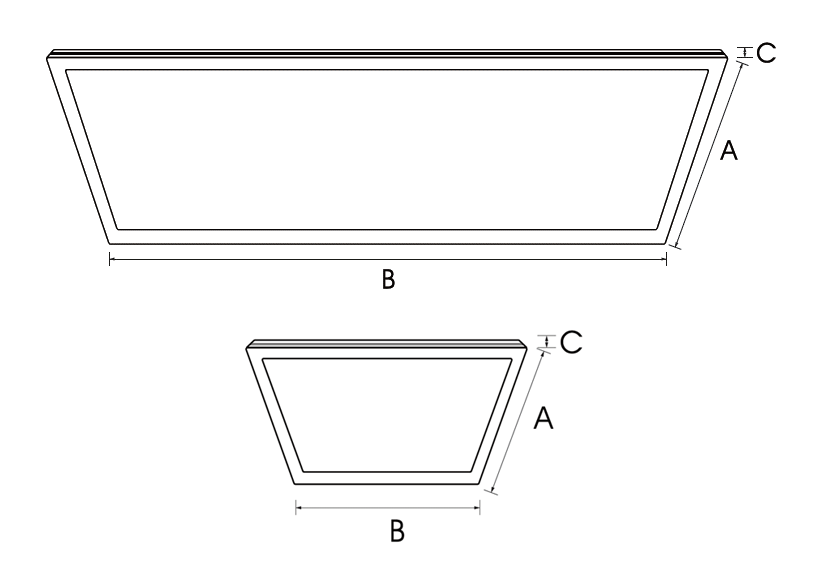

Size 620*620*9.6mm
Current 700mA
Driver External isolated driver
Code P6252-AMH
Power 36W
Input 220-240Vac 50/60Hz
Color Temp 3000K/4000K/6000K
Lumen@4000K 3600lm
IP Rating 20
CRI >80
Beam Angle 110°
Size 620*620*9.6mm
Current 900mA
Driver External isolated driver
Code P6252-BMH
Power 40W
Input 220-240Vac 50/60Hz
Color Temp 3000K/4000K/6000K
Lumen@4000K 4000lm
IP Rating 20
CRI >80
Beam Angle 110°
Size 620*620*9.6mm
Current 1050mA
Driver External isolated driver
Code P6252-DMP
Power 30W
Input 220-240Vac 50/60Hz
Color Temp 3000K/4000K/6000K
Lumen@4000K 3600lm
IP Rating 20
CRI >80
Beam Angle 110°
Size 620*620*9.6mm
Current 700mA
Driver External isolated driver
Code P6252-AMP
Power 36W
Input 220-240Vac 50/60Hz
Color Temp 3000K/4000K/6000K
Lumen@4000K 4320lm
IP Rating 20
CRI >80
Beam Angle 110°
Size 620*620*9.6mm
Current 900mA
Driver External isolated driver
Code P6252-BMP
Power 40W
Input 220-240Vac 50/60Hz
Color Temp 3000K/4000K/6000K
Lumen@4000K 4800lm
IP Rating 20
CRI >80
Beam Angle 110°
Size 620*620*9.6mm
Current 1050mA
Driver External isolated driver
  Alunimum frame, no junction gap.
  Uniform light, no white spots,  no dark areas, no bright edges.
  Non dimmable/ 1-10V dimmable/ Dali dimmable available.
  Suspension kit, Recessed kit, Ceiling surface mounting frame available.
  Single CCT or 3CCT available.
  L70 to 60,000hrs.
