LED Linear Lights

LED Linear Lights

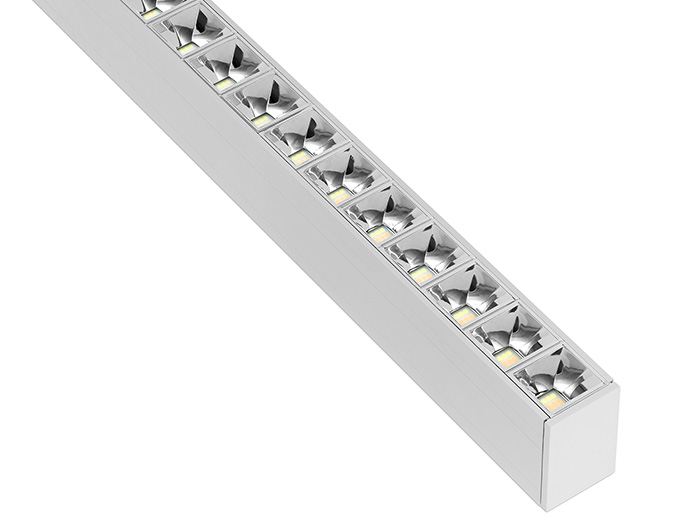

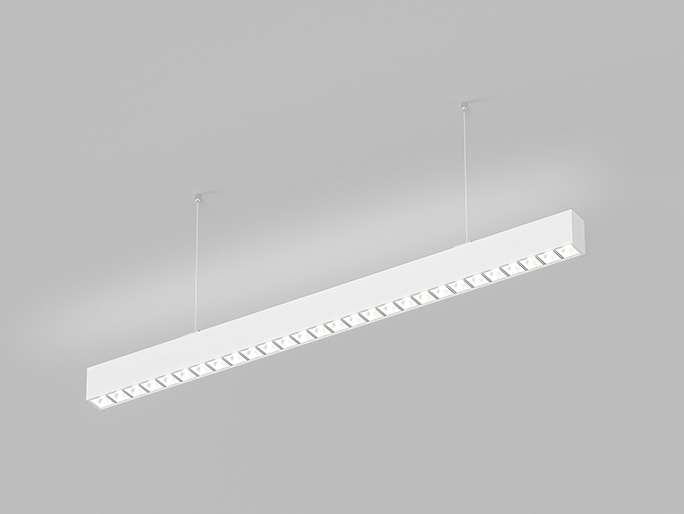

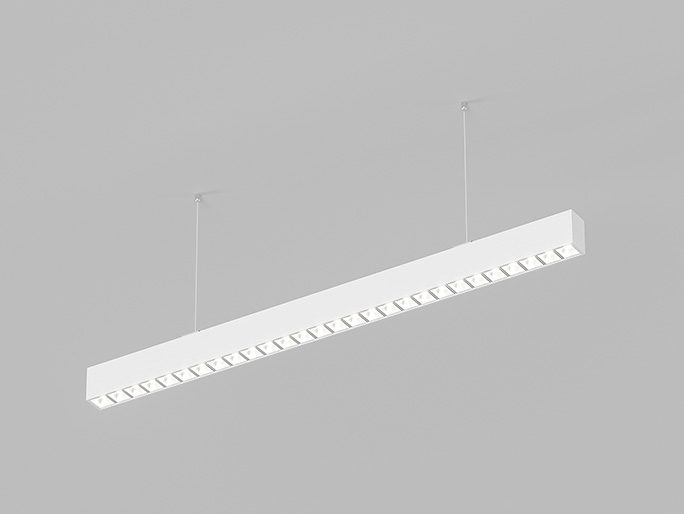

Block Linear lights 1.5M- L1503-R

Extruded strong modern aluminum housing.

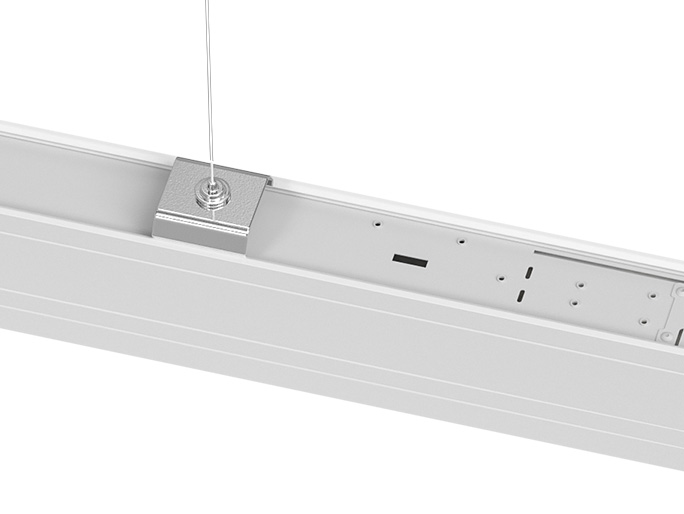

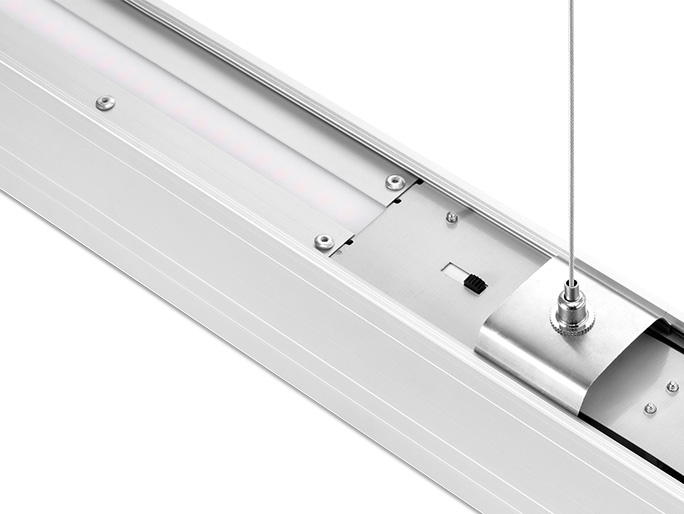

Suspension kit, ceiling surface mounted fitting available.
CCT switchable between 3000K,4000K and 6000K.
Two versions:light downwards & light 70% down and 30% upwards.

40W4400lm110lm/WCRI>8060°

Code	L1503-R
Power	40W
Input	220-240Vac 50/60Hz
Color Temp	4000K
Lumen@4000K	4400lm
IP Rating	20
IK Rating	02
CRI	＞80
Beam Angle	60°
Size	14105076mm
Driver	Internal isolated driver

Code	L1503-DR
Power	55W
Input	220-240Vac 50/60Hz
Color Temp	4000K
Lumen@4000K	6050lm
IP Rating	20
IK Rating	02
CRI	＞80
Beam Angle	60°
Size	14105076mm
Driver	Internal isolated driver

Code	L1503-R-TW
Power	40W
Input	220-240Vac 50/60Hz
Color Temp	3CCT
Lumen@4000K	4400lm
IP Rating	20
IK Rating	02
CRI	＞80
Beam Angle	60°
Size	14105076mm
Driver	Internal isolated driver

Code	L1503-DR-TW
Power	55W
Input	220-240Vac 50/60Hz
Color Temp	3CCT
Lumen@4000K	6050lm
IP Rating	20
IK Rating	02
CRI	＞80
Beam Angle	60°
Size	14105076mm
Driver	Internal isolated driver

Suspension kit, ceiling surface mounted fitting available.

Single CCT and 3CCT colors are available.

Silver/white/Black housing are available.

Extruded strong modern aluminum housing.

1.2m and 1.5m options.

Diffuser and reflector options.

Different connection shapes: Straight, Y-shape,Square, W-shape, and cross-shape.

L70 to 85000hrs.
