Block Linear lights 1.5M- L1503-A

Extruded strong modern aluminum housing.

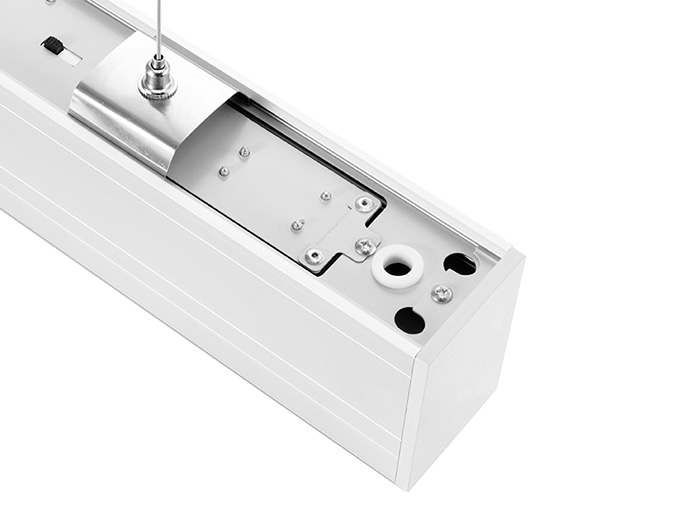

Suspension kit, ceiling surface mounted fitting available.
CCT switchable between 3000K,4000K and 6000K.
Two versions:light downwards & light 70% down and 30% upwards.

32W3200lm100lm/WCRI>8090°

Code	L1503-A
Power	40W
Input	220-240Vac 50/60Hz
Color Temp	4000K
Lumen@4000K	4000lm
IP Rating	20
IK Rating	02
CRI	＞80
Beam Angle	90°
Size	14105076mm
Driver	Internal isolated driver

Code	L1503-DA
Power	55W
Input	220-240Vac 50/60Hz
Color Temp	4000K
Lumen@4000K	5500lm
IP Rating	20
IK Rating	02
CRI	＞80
Beam Angle	90°
Size	14105076mm
Driver	Internal isolated driver

Code	L1503-A-TW
Power	40W
Input	220-240Vac 50/60Hz
Color Temp	3CCT
Lumen@4000K	4000lm
IP Rating	20
IK Rating	02
CRI	＞80
Beam Angle	90°
Size	14105076mm
Driver	Internal isolated driver

Code	L1503-DA-TW
Power	55W
Input	220-240Vac 50/60Hz
Color Temp	3CCT
Lumen@4000K	5500lm
IP Rating	20
IK Rating	02
CRI	＞80
Beam Angle	90°
Size	14105076mm
Driver	Internal isolated driver

Suspension kit, ceiling surface mounted fitting available.

Single CCT and 3CCT colors are available.

Silver/white/Black housing are available.

Extruded strong modern aluminum housing.

1.2m and 1.5m options.

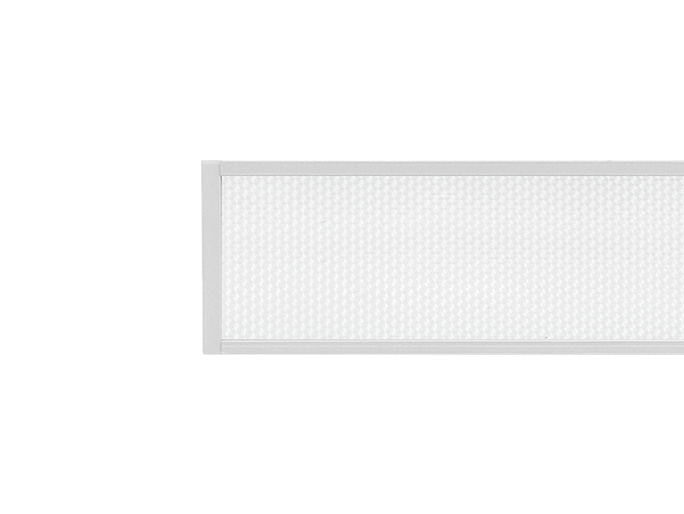

Diffuser and reflector options.

Different connection shapes: Straight, Y-shape,Square, W-shape, and cross-shape.

L70 to 85000hrs.
