LED Troffer Lights

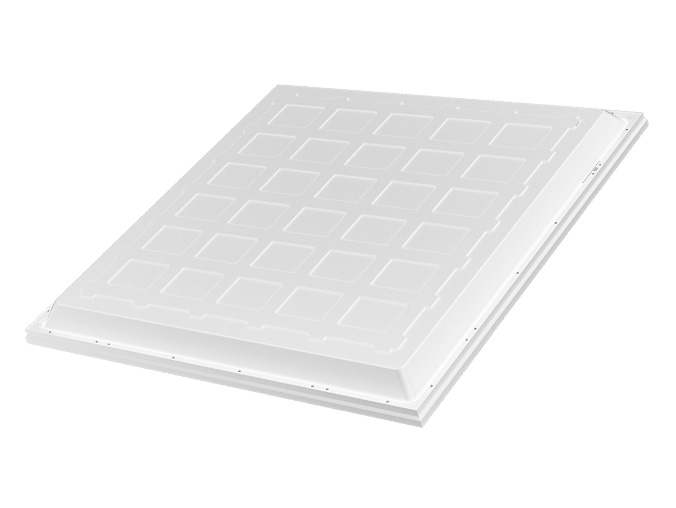

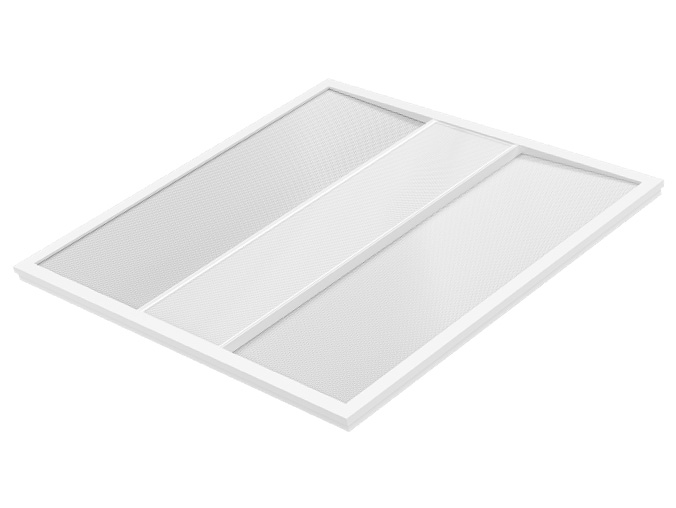

Butterfly- Butterfly

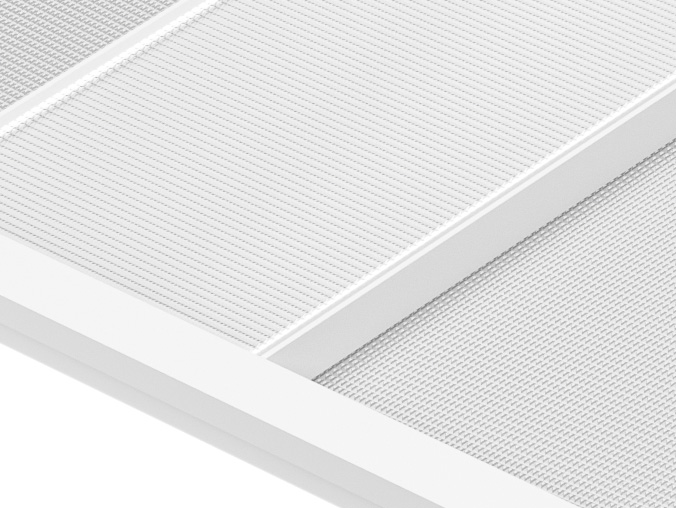

Butterfly grille light is a new louver anti-glare design, It adopts anti-glare prism plate to reach UGR<19, direct lighting design makes a high lumen efficiency and uniform light output, it is an ideal combination of style and high performance.Layer lighting, suitable for high-end place.
36W 4100-4320lmlm CRI>80 90°
Code T5606-AMSUI
Power 36W
Input 220-240Vac 50/60Hz
Color Temp 3000K/4000K/5700K/6500K
Lumen@4000K 4100-4320lm
IP Rating IP20
CRI >80
Beam Angle 90°

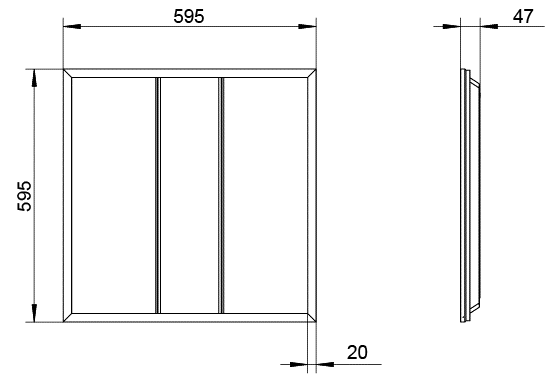

Size 595*595mm
Current 900mA
Driver External isolated driver
Code T5662-AMSUI
Power 36W
Input 220-240Vac 50/60Hz
Color Temp 3000K/4000K/5700K/6500K
Lumen@4000K 4100-4320lm
IP Rating IP20
CRI >80
Beam Angle 90°
Size 620*620mm
Current 950mA
Driver External isolated driver
  Anti-glare design UGR<19.
  High lumen efficiency, up to 120lm/w.
  Without LGP, no yellowing risk.
  Uniform light, no white spots, no dark areas, no bright edges.
  External flicker free Casambi driver.
  Programming via intuitive Casambi app.
