Swan- Swan

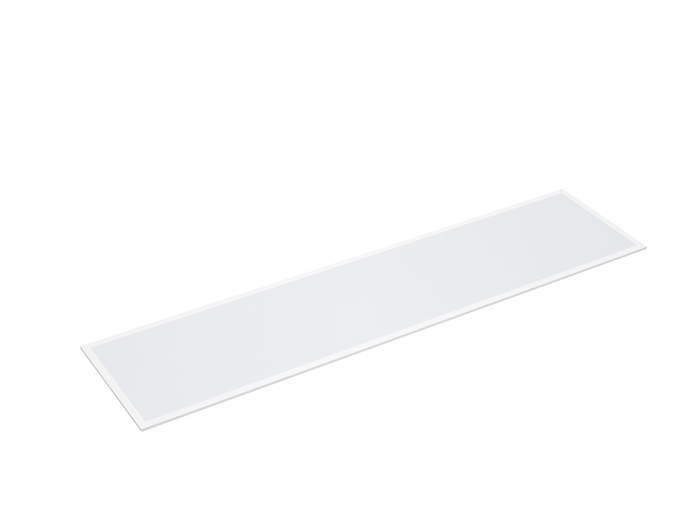

Swan LED panel is a direct lighting product with high lumen efficiency. Extremely thin design with only 28mm height.It makes full use of all light and is more cost effective compared with side lighting LED panel light. Adopt optical lens to offer a uniform light effect. With integrated iron plate,providing great thermalmanagement.

36W 5400lm 150lm/W CRI＞80 90°

Code	T3606-AMSUI
Power	36W
Input	220-240Vac 50/60Hz
Color Temp	3000K/4000K/5700K/6500K
Lumen@4000K	5400lm
IP Rating	20
CRI	＞80
Beam Angle	90°
Size	595*595mm
Current	700mA
Driver	External isolated driver

Code	T3662-AMSU
Power	36W
Input	220-240Vac 50/60Hz
Color Temp	3000K/4000K/5700K/6500K
Lumen@4000K	5400lm
IP Rating	20
CRI	＞80
Beam Angle	90°
Size	620*620mm
Current	900mA
Driver	External isolated driver

Code	T3312-AMSUI
Power	36W
Input	220-240Vac 50/60Hz
Color Temp	3000K/4000K/5700K/6500K
Lumen@4000K	5400lm
IP Rating	20
CRI	＞80
Beam Angle	90°
Size	295*1195mm
Current	950mA
Driver	External isolated driver

Anti-glare design UGR<19.

High lumen efficiency, up to 140lm/w.

Without LGP, no yellowing risk.

Uniform light, no white spots, no dark areas, no bright edges.

External flicker free Casambi driver.

Programming via intuitive Casambi app.
